LZ4-04MDCA-0000

Category : Optoelectronics Color LED Lighting

Current - Max : 1.5A Red, 1.5A Green, 1.5A Blue, 1.5A White

Product Status : Obsolete

Luminous Flux @ Current/Temperature : 62lm Red, 133lm Green, 24lm Blue, 183nm White

Mounting Type : Surface Mount

Height - Seated (Max) : 0.065" (1.65mm)

Package : Tape & Reel (TR) Cut Tape (CT) Digi-Reel®

Color : Red, Green, Blue, White - Cool (RGBW)

Series : LuxiGen™ LZ4

Package / Case : 2828 (7070 Metric)

Viewing Angle : 110°

Thermal Resistance of Package : 1.1°C/W

Supplier Device Package : SMD

Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)

Lumens/Watt @ Current - Test : 35 lm/W Red, 53 lm/W Green, 11 lm/W Green, 82 lm/W

Mfr : ams-OSRAM USA INC.

Wavelength : 624nm Red, 525nm Green, 457nm Blue, 6500K White

Temperature - Test : 25°C

Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA White

Voltage - Forward (Vf) (Typ) : 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White

Description : LED LUXIGEN LZ4 RGBW SMD

Stock : In Stock

Shipping Method : LCL, AIR, FCL, Express

Payment Terms : L/C, D/A, D/P, T/T, Western Union,

Contact Now

LED Lighting Color LuxiGen™ LZ4 Red, Green, Blue, White - Cool (RGBW) 624nm Red, 525nm Green, 457nm Blue, 6500K White 2828 (7070 Metric)

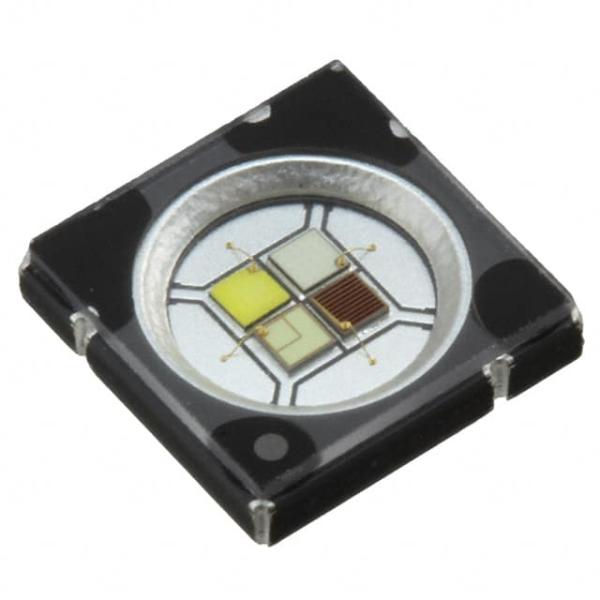

LZ4-04MDCA-0000 Images
